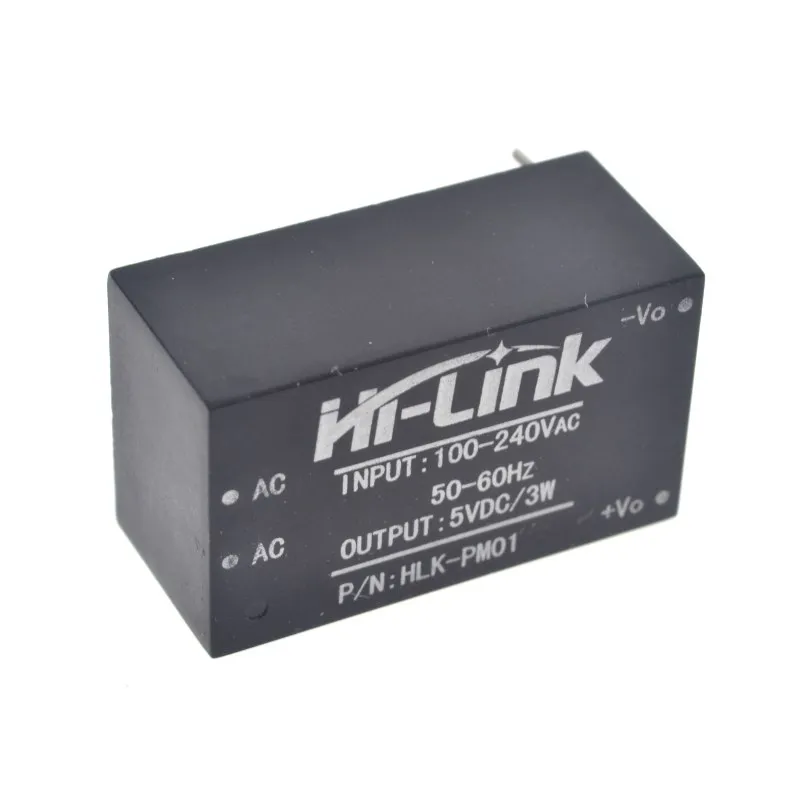

HLK - PM01 AC- DC 220V 5A Module D 'Alimentation Abaisseur Module D' Alimentation DE Commutation Intelligente Des Menages Robot

stars, based on ( 0 ) reviews
FREE SHIPPING Over $20 for All orders.
$11.58now piece
9999 items available
Product Features
  • The ultra-thin, subminiature
  • The full voltage input (90 ~ 264 Vac)
  • Low ripple and low noise
  •  Output overload short circuit protection function
  •  High efficiency and power density
  • Product design to meet the EMC and safety testing requirements
  •  Low power consumption, green environmental protection, no-load loss < 0.1 W
  • 100% load test
  • Meet the requirements of UL, CE,
 Environmental Conditions
  • Working temperature:  -20- + 60 Celsius
  •  Storage temperature:   -40- + 80 Celsius
  •  Relative Humidity:   5-95%
  •  Cooling:   natural cooling
  •  Atmospheric pressure:  80-106 Kpa
  • Altitude:    ≤2000m
  • Vibration:  Vibration coefficient 10 ~ 500Hz, 2G10min / 1cycle, 60min.each along X, Y, Z axes
Electrical Characteristics (at ambient temperature test)
  • Rated input voltage:  100-240 VAc
  • Input voltage range:  90-264VAc
  • Maximum input current:  ≤0.2A
  • Input current surge:  ≤10A
  • Maximum input voltage:  ≤270VAc
  • Enter slow start:  ≤50mS
  •  Input Low Voltage Efficiency:  Vin = 110VAc, full load ≥69%
  • Input High Voltage Efficiency:  Vin = 220VAc, full load ≥70%
  • Long-term reliability:  MTBF≥100,000h
  • Load rated output voltage:  + 5 ± 0.1VDc
  • Full rated output voltage:    + 5 ± 0.2VDc
  • Short-term maximum output current:        ≥1000mA
  • Maximum output current for a long time:   ≥600mA
  • Voltage Regulation:  ± 0.2%
  • Load regulation:      ± 0.5%
  • Output ripple and noise (mVp-p):   ≤50
  • Switch overshoot amplitude:  ( rated input voltage, output load plus 10%) ≤5% VO
  • Output over-current protection:   output maximum load of 150-200% A
Shipping List
  • HLK-PM01 module: 1pcs
